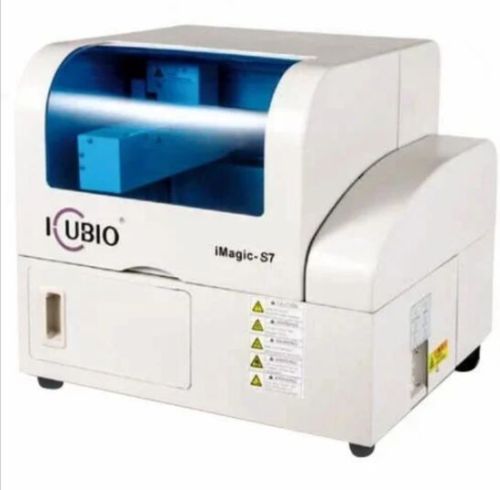

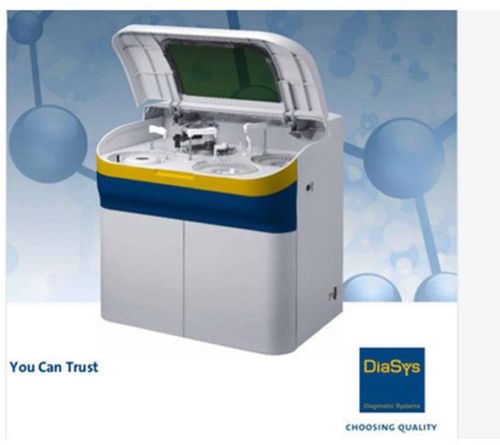

Chemistry Analyzer

Features

• Constant throughput of 400 photometry tests per hour Rear Spectrophotometry Grating with Cluster- Optical Path, realizing Supermicro Volume detection of reaction Solution 3- Polished probe (60 nm), liquid level detection, Clot Detection & collision protection Cuvette auto rinsing and blank cuvette detection Sample rerun and dilution function User defined input of patient information & graphical software

Sample/Reagent Pipetting System

•  3 individual probes polished with nano processing technology 1 for sample 2 for Reagents Automatic Liquid Level Detection Clot Detection 3 individual syringes for 3 probes Self resetting and collision protection function Probe washing: High pressure rinsing for internal walls, stream washing for external walls

Photometry System

• Monochromator with Holographic Conclave Flat Field Grating, Rear Spectrophotometric 12 ways parallel measuring technology, reduces ambient light interference to get accurate result Cluster-condensing light technology to reach Super-Micro Analysis 12 wavelength photodiode array detector, 12 ways high dynamic range amplifier (6 Abs without distortion)

Monochromator with Holographic Conclave Flat Field Grating, Rear Spectrophotometric 12 ways parallel measuring technology, reduces ambient light interference to get accurate result Cluster-condensing light technology to reach Super-Micro Analysis 12 wavelength photodiode array detector, 12 ways high dynamic range amplifier (6 Abs without distortion)
• • • Composed of outer track (50 pos), middle track (40 pos), and inner track (25 pos) and lamp Outer track: For routine samples Middle track: For Calibrator, STAT sample, Detergent Inner track: Cooling available for calibrators & controls. Can be restored in 5º???15º
2 stand alone Stirrers stirring immediately after adding reagent to mix the reaction solution well Teflon coated stirrer Flat paddle design along with swirl rinsing.
Large volume refrigerated double reagent disks Continuous cooling secures reagent quality 90 positions: 88 reagents + 2 detergents Up to 4 reagents testing (R1, R2, R3, R4)
Graphical operating software, simple interface & user friendly Real time online help system Multiple self monitoring functions Multiple report formats, user defined, automatic print function
• • • Reaction Cuvette Rotor consists of 6 segments of 20 reusable cuvettes. Total of 120 Cuvettes Constant temperature maintained by using recycling water const. temp. device which automatically changes water Reaction Cuvette emerged in warm water heating up the cup evenly and reduces ambient temperature influence PID thermostat technology ensures 37ºC with variation of ± 0.1ºC
Linear & Non Linear Calibration, can be set with time, reagent lot number etc. with flexible calibration methods 9 types of calibration curves to satisfy different analysis demands Each items can use 6 different levels of calibrators Calibration tracing function, K value variation trends help to reduce system error QC interval & monthly QC ensure best analysis condition of instrument QC rule: Default as Westgaurd rules QC plot- L-J, Cumulative, Twin Plot
